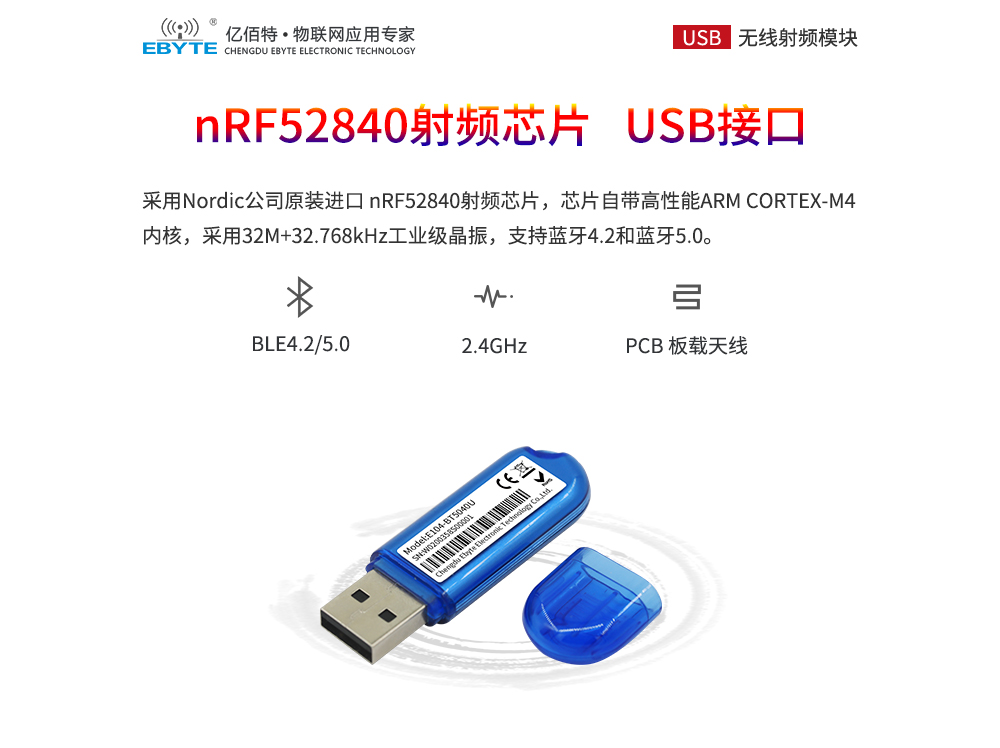

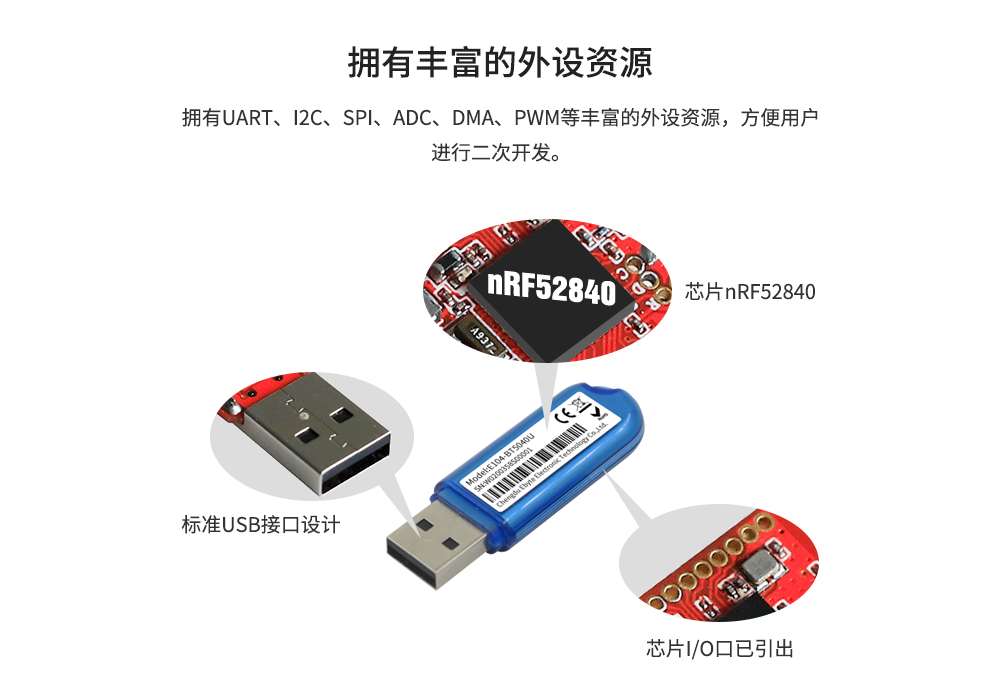

芯片方案：nRF52840
工作頻率：2360~2500MHz
支持協議：BLE 4.2 / BLE 5.0
通信距離：250m
產品尺寸：59*18mm
產品重量：7g±0.1g

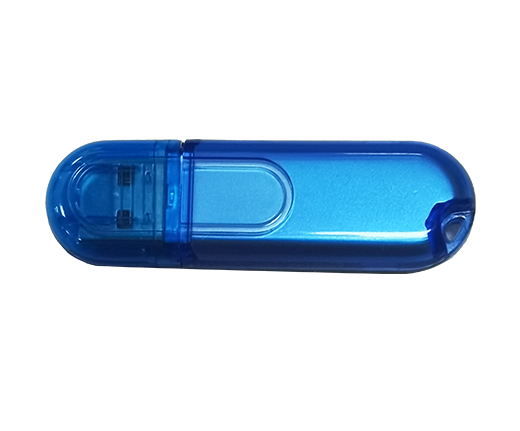

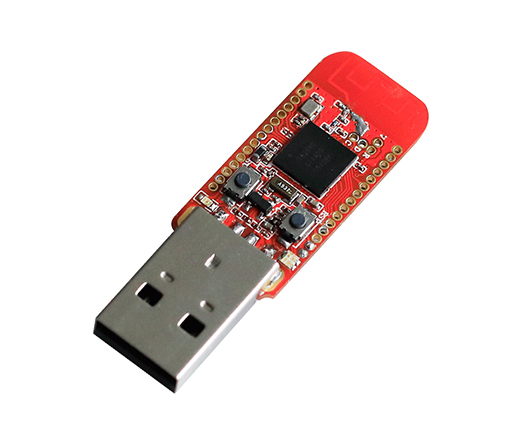

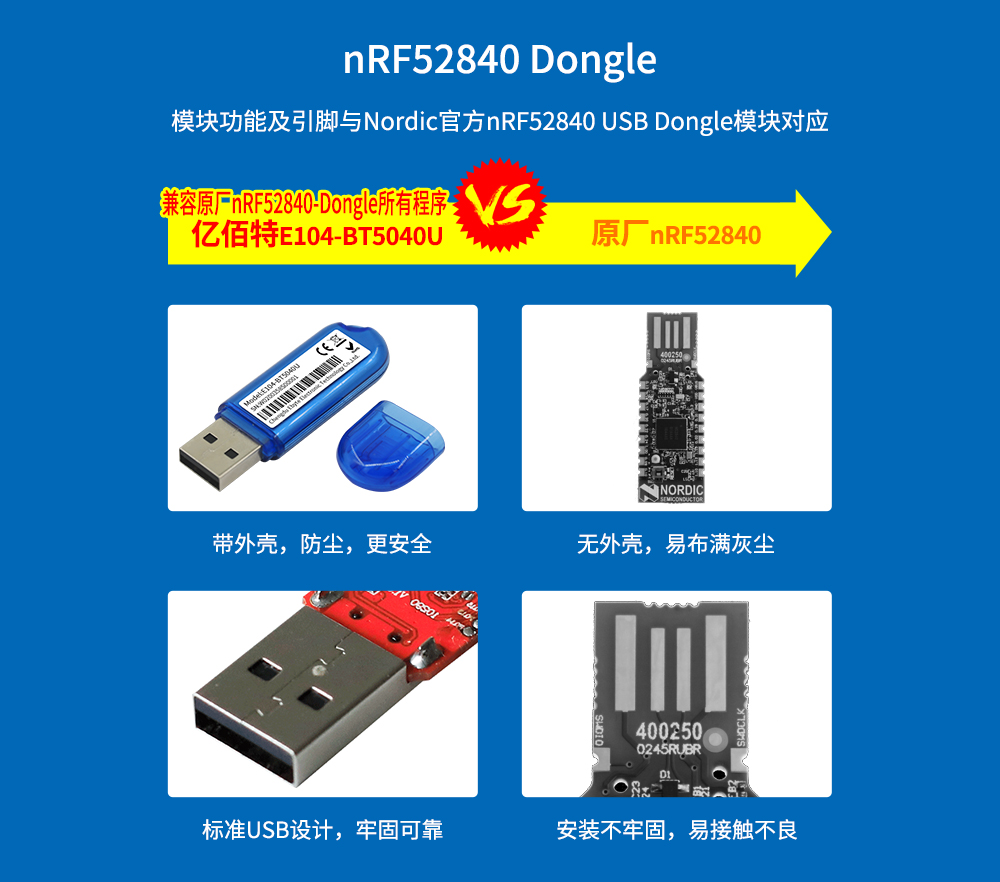

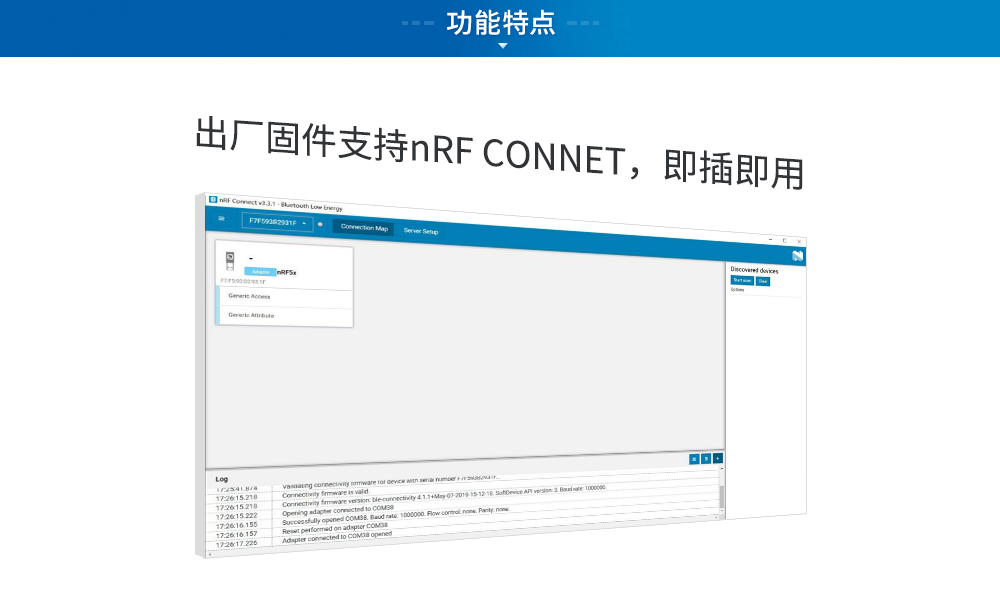

產品簡介：E104-BT5040U是億佰特設計生產的一款體積極小的USB接口藍牙無線模塊；藍牙模塊功能及引腳與Nordic官方nRF52840芯片USB Dongle模塊一一對應（可在Nordic官方下載相關原理圖）。自帶高性能PCB板載天線，采用藍牙低能耗 (BLE) 的SOC方案。
| 射頻參數 | 參數值 | 備注 |
| 工作頻段 | 2360~2500 MHz | 支持 ISM 頻段 |
| 最大發射功率 | 8dBm | — |
| 接收靈敏度 | -103dBm@BLE 125kbps （長距離模式） -95dBm@BLE 1Mbps | — |
| 實測距離 | 250米 | 晴朗空曠，高度 2.5 米，空中速率 1Mbps |
| 硬件參數 | 參數值 | 備注 |
| 晶振頻率 | 32MHz/32.768kHz | |
| 支持協議 | BLE4.2/5.0 | |
| 供電方式 | USB/1.27mm 孔 | |
| 接口方式 | USB/1.27mm 孔 | |
| IC 全稱 | nRF52840-QIAAC0/aQFNTM 73 | |
| FLASH | 1024kB | |
| RAM | 256kB | |
| 內核 | ARM@ Cortex ? -M4 | |
| 外形尺寸 | 59*18mm | 加外殼帶帽 |
| 射頻接口 | PCB 板載天線 | |
| 電氣參數 | 最小值 | 典型值 | 最大值 | 單位 | 條件 |
| 工作電壓 | 4.35 | 5 | 5.5 | V | USB 供電 |
| 通信電平 | 0 | 3.3 | 3.6 | V | 使用 5V 電平有風險燒毀 |
| 發射電流（TX only run current (DCDC, 3V) PRF =+8 dBm） | - | 17.05 | - | mA | |
| 發射電流(TX only run current (DCDC, 3V) PRF =+4 dBm) | - | 12.68 | - | mA | |
| 發射電流(TX only run current (DCDC, 5V, REG0 out = 3.3 V)PRF= 0dBm) | - | 7.25 | - | mA | |
| 發射電流(TX only run current (DCDC, 3V)PRF = 0dBm) | - | 7.63 | - | mA | |
| 發射電流(TX current (3V) 1Mbps BLE measured from VBAT with PRF=9dBm) | - | 32 | - | mA | |
| 接收電流(RX only run current (DCDC, 3V) 1Mbps / 1Mbps BLE) | - | 7.71 | - | mA | |
| 接收電流(RX only run current (DCDC, 3V) 2Mbps / 2Mbps BLE) | - | 8.27 | - | mA | |
| 工作溫度 | -40 | - | +125 | ℃ | 工業級 |

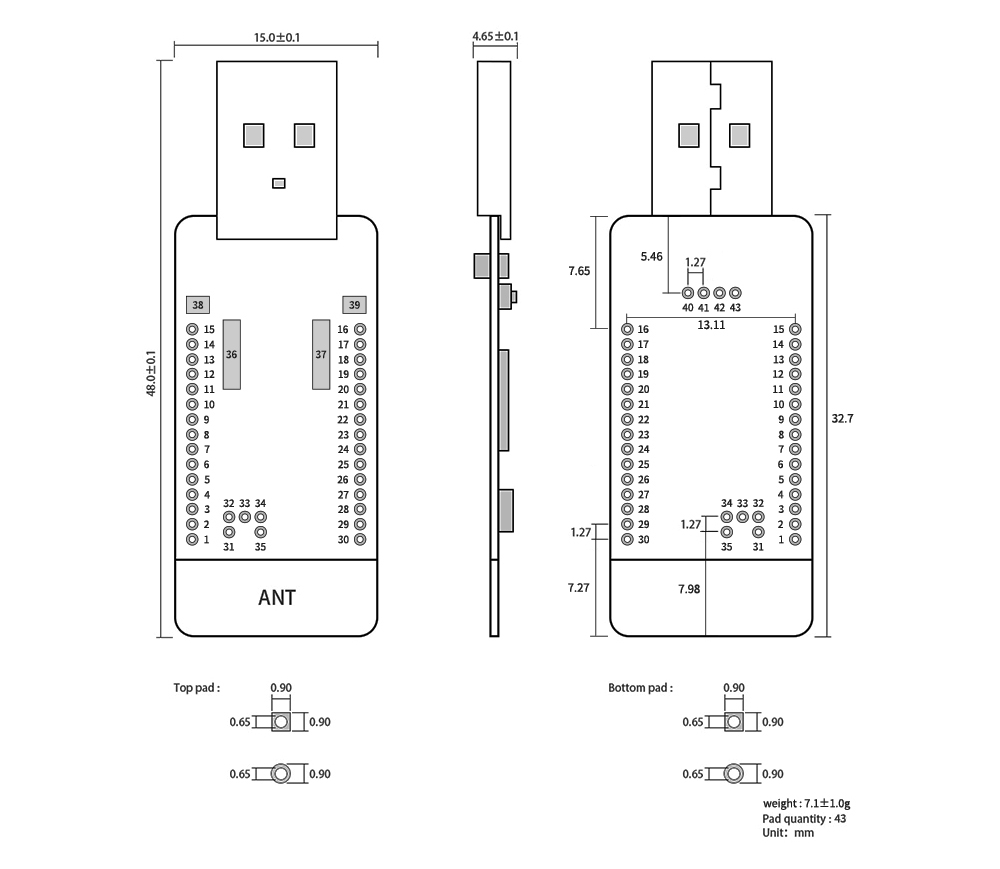

| 序號 | 引腳 | 引腳方向 | 備注 |
| 1 | GND | —— | 電源參考地 |
| 2 | P0.10 | J24 | 詳見官方芯片手冊 |
| 3 | P0.09 | L24 | 詳見官方芯片手冊 |
| 4 | P1.04 | U24 | 詳見官方芯片手冊 |
| 5 | P1.02 | W24 | 詳見官方芯片手冊 |
| 6 | P1.00 | AD22 | 詳見官方芯片手冊 |
| 7 | P1.07 | P23 | 詳見官方芯片手冊 |
| 8 | P1.01 | Y23 | 詳見官方芯片手冊 |
| 9 | P0.24 | AD20 | 詳見官方芯片手冊 |
| 10 | P0.22 | AD18 | 詳見官方芯片手冊 |
| 11 | P0.20 | AD16 | 詳見官方芯片手冊 |
| 12 | P0.17 | AD12 | 詳見官方芯片手冊 |
| 13 | P0.15 | AD10 | 詳見官方芯片手冊 |
| 14 | P0.13 | AD8 | 詳見官方芯片手冊 |
| 15 | P0.14 | AC9 | 詳見官方芯片手冊 |
| 16 | VBUS | USB5V | 禁止與 USB 同時供電，最大 5.5V |
| 17 | VDD | —— | 芯片供電引腳，最大 3.6V，禁止與 USB 電源同時供電 |
| 18 | GND | —— | 電源參考地 |
| 19 | P0.04 | J1 | 詳見官方芯片手冊 |
| 20 | P0.26 | G1 | 詳見官方芯片手冊 |
| 21 | P0.11 | B19 | 詳見官方芯片手冊 |
| 22 | P0.31 | A8 | 詳見官方芯片手冊 |
| 23 | P0.29 | A10 | 詳見官方芯片手冊 |
| 24 | P0.02 | A12 | 詳見官方芯片手冊 |
| 25 | P1.15 | A14 | 詳見官方芯片手冊 |
| 26 | P1.13 | A16 | 詳見官方芯片手冊 |
| 27 | P1.11 | B19 | 詳見官方芯片手冊 |
| 28 | P1.10 | A20 | 詳見官方芯片手冊 |
| 29 | GND | —— | 電源參考地 |
| 30 | GND | —— | 電源參考地 |
| 31 | V | VDD | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 32 | R | RESET | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 33 | D | SWDIO | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 34 | C | SWCLK | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 35 | G | GND | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 36 | RST | RESET | 復位按鍵 |
| 37 | SW | P1.06 | 功能按鍵 |
| 38 | LED1 | RGB 三色 LED | R(紅色): P0.08; G(綠色): P1.09; B(藍色): P0.12 |
| 39 | LED | LED | P0.06 |
| 40 | G | GND | USB 測試點 |
| 41 | D+ | —— | USB 測試點 |
| 42 | D- | —— | USB 測試點 |
| 43 | V | VBUS | USB 測試點 |
