芯片方案：nRF52832
工作頻率：2400~2480MHz
支持協議：BLE4.2/BLE5.0
通信距離：80m
產品尺寸：59*18mm
產品重量：8.7g±0.1g

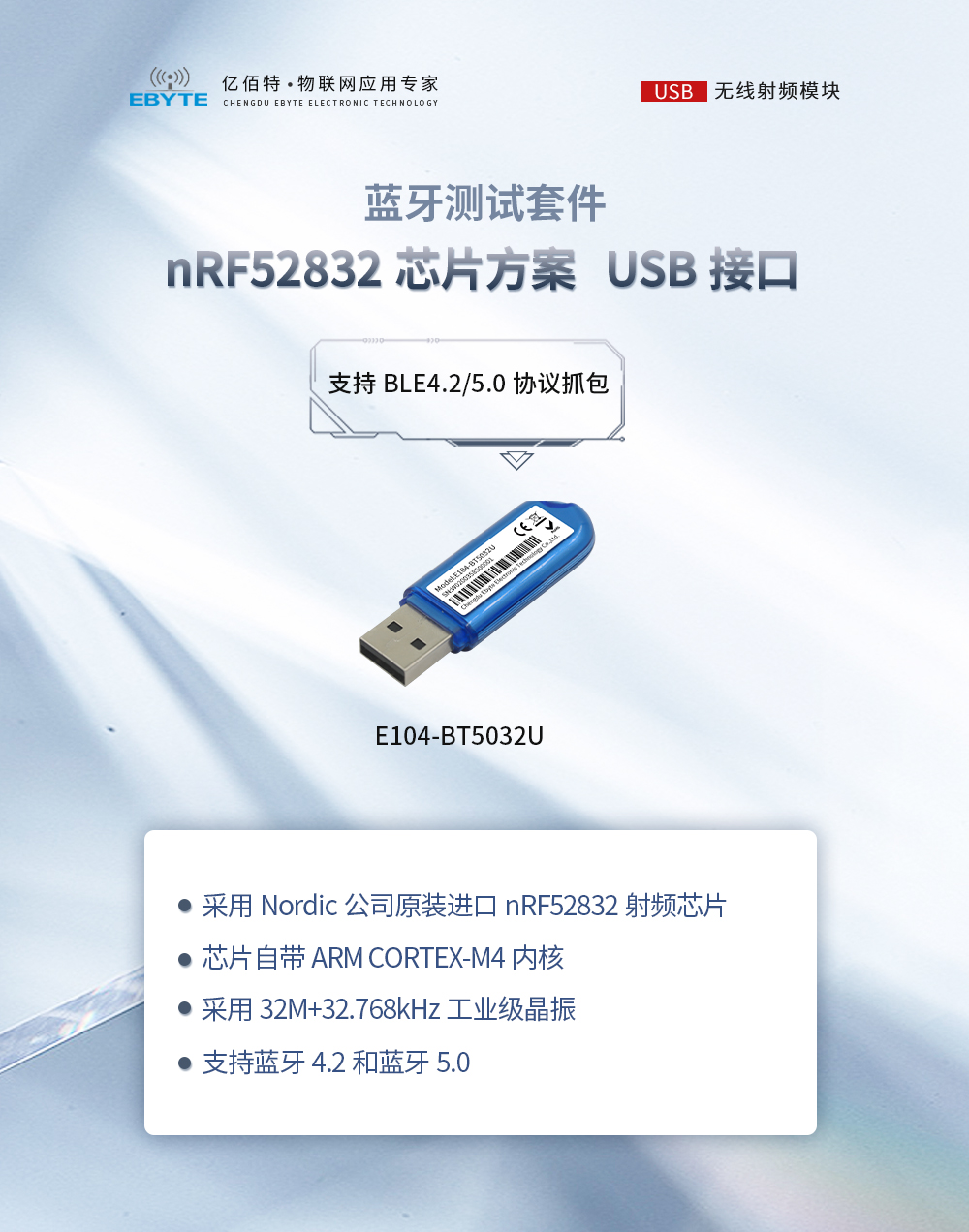

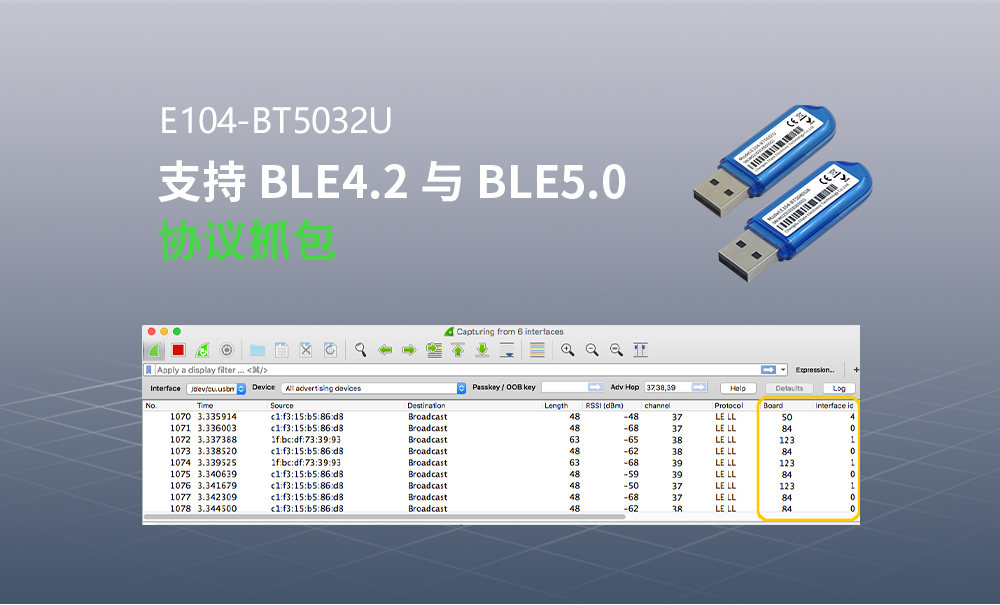

產品簡介：E104-BT5032U是億佰特生產的一款體積極小的USB接口藍牙無線抓包工具；自帶高性能 PCB 板載天線，采用藍牙低能耗 (BLE) 的 SOC 方案。藍牙抓包工具采用Nordic公司原裝進口nRF52832射頻芯片，支持藍牙4.2和藍牙5.0傳輸協議。
| 主要參數 | 參數值 | 備注 |
| 工作電壓 | 5V | USB/VBUS 供電 |
| 工作溫度 | -40~+85℃ | 工業級設計 |
| 工作頻段 | 2400~2480MHz | 支持 ISM 頻段 |
| 發射電流 | 28mA | - |
| 接受電流 | 21mA | - |
| 休眠電流 | 10mA | - |
| 最大發射功率 | 3dBm | - |
| 接受靈敏度 | -96dBm@BLE 1Mbps | - |
| 參考距離 | 80m | 晴朗空曠，空中速率 1Mbps |
| 晶振頻率 | 32MHz/32.768kHz | - |
| 供電方式 | USB | - |
| 接口方式 | USB | - |
| IC 全稱 | nRF52832-QFAA/QFN48 | - |
| FLASH | 512kB | - |
| RAM | 64kB | - |
| 內核 | ARM@ Cortex ? -M4 | - |
| 外形尺寸 | 59 * 18mm | 加外殼帶帽 |
| 天線形式 | PCB 板載天線 | - |
| 序號 | 引腳 | 引腳方向 | 備注 |
| 1 | GND | —— | 電源參考地 |
| 2 | P0.10 | J24 | 詳見官方芯片手冊 |
| 3 | P0.09 | L24 | 詳見官方芯片手冊 |
| 4 | P1.04 | U24 | 詳見官方芯片手冊 |
| 5 | P1.02 | W24 | 詳見官方芯片手冊 |
| 6 | P1.00 | AD22 | 詳見官方芯片手冊 |
| 7 | P1.07 | P23 | 詳見官方芯片手冊 |
| 8 | P1.01 | Y23 | 詳見官方芯片手冊 |
| 9 | P0.24 | AD20 | 詳見官方芯片手冊 |
| 10 | P0.22 | AD18 | 詳見官方芯片手冊 |
| 11 | P0.20 | AD16 | 詳見官方芯片手冊 |
| 12 | P0.17 | AD12 | 詳見官方芯片手冊 |
| 13 | P0.15 | AD10 | 詳見官方芯片手冊 |
| 14 | P0.13 | AD8 | 詳見官方芯片手冊 |
| 15 | P0.14 | AC9 | 詳見官方芯片手冊 |
| 16 | VBUS | USB5V | 禁止與 USB 同時供電，最大 5.5V |
| 17 | VDD | —— | 芯片供電引腳，最大 3.6V，禁止與 USB 電源同時供電 |
| 18 | GND | —— | 電源參考地 |
| 19 | P0.04 | J1 | 詳見官方芯片手冊 |
| 20 | P0.26 | G1 | 詳見官方芯片手冊 |
| 21 | P0.11 | B19 | 詳見官方芯片手冊 |
| 22 | P0.31 | A8 | 詳見官方芯片手冊 |
| 23 | P0.29 | A10 | 詳見官方芯片手冊 |
| 24 | P0.02 | A12 | 詳見官方芯片手冊 |
| 25 | P1.15 | A14 | 詳見官方芯片手冊 |
| 26 | P1.13 | A16 | 詳見官方芯片手冊 |
| 27 | P1.11 | B19 | 詳見官方芯片手冊 |
| 28 | P1.10 | A20 | 詳見官方芯片手冊 |
| 29 | GND | —— | 電源參考地 |
| 30 | GND | —— | 電源參考地 |
| 31 | V | VDD | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 32 | R | RESET | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 33 | D | SWDIO | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 34 | C | SWCLK | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 35 | G | GND | 下載接口，盡量避免 USB 供電下 VDD 同時供電 |
| 36 | RST | RESET | 復位按鍵 |
| 37 | SW | P1.06 | 功能按鍵 |
| 38 | LED1 | RGB 三色 LED | R(紅色): P0.08; G(綠色): P1.09; B(藍色): P0.12 |
| 39 | LED | LED | P0.06 |
| 40 | G | GND | USB 測試點 |
| 41 | D+ | —— | USB 測試點 |
| 42 | D- | —— | USB 測試點 |
| 43 | V | VBUS | USB 測試點 |
