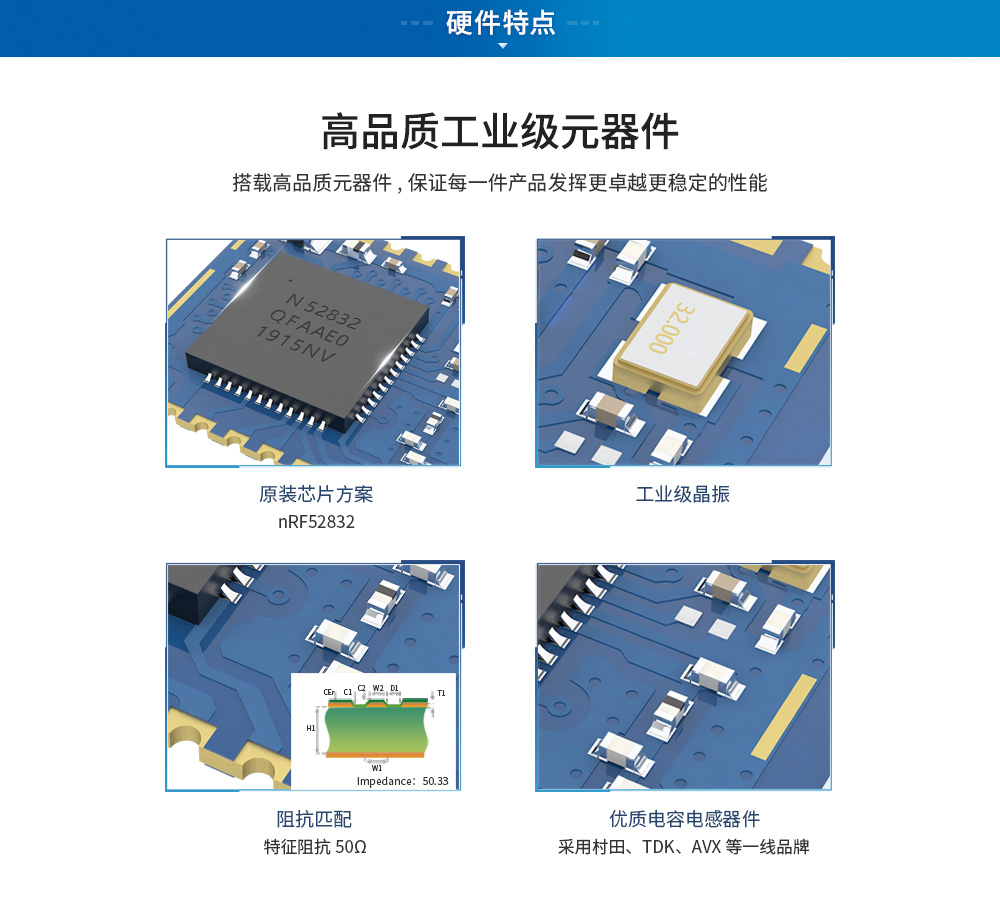

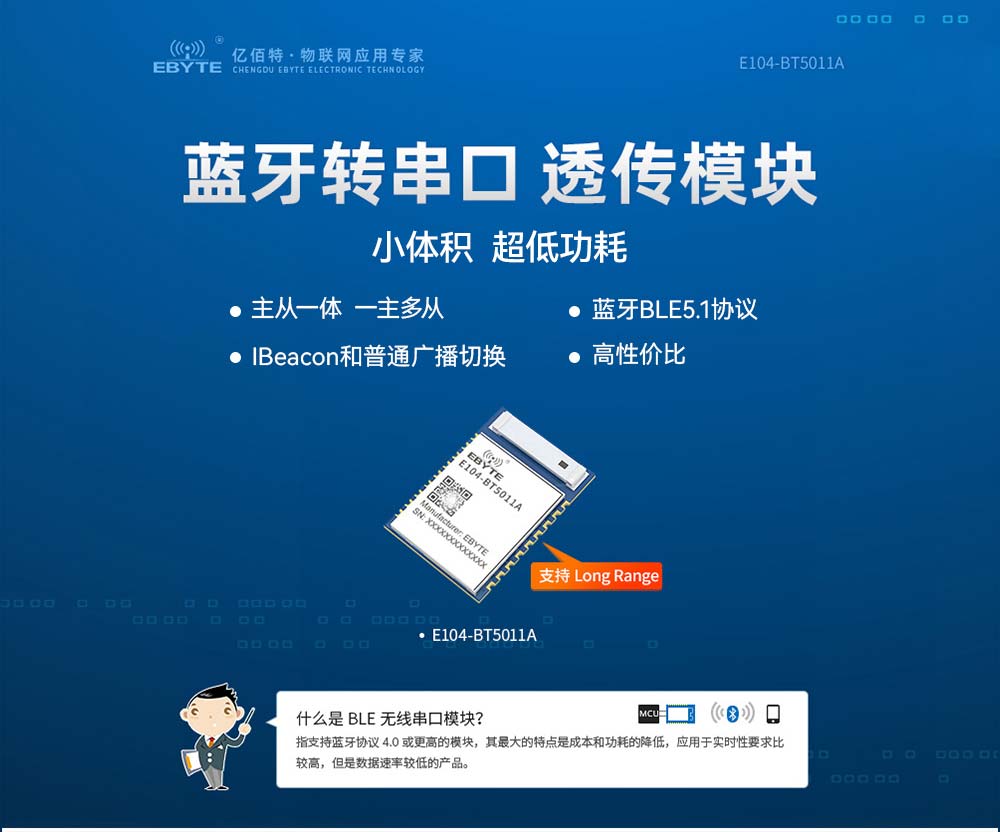

芯片方案：nRF52811
工作頻率：2.402~2.480GHz
藍牙協議：BLE5.1
通信距離：70m

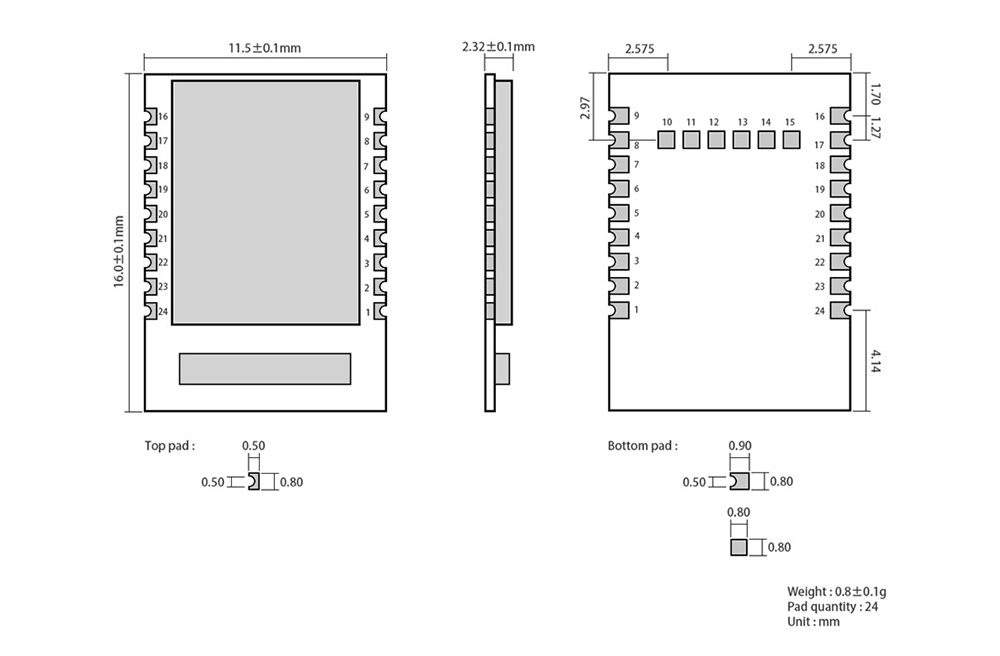

產品尺寸：11.5*16mm
產品重量：0.8±0.1g

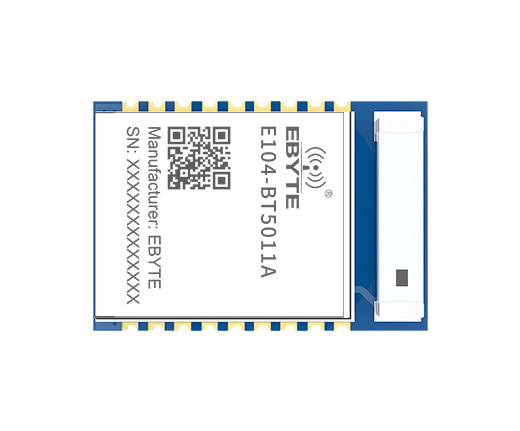

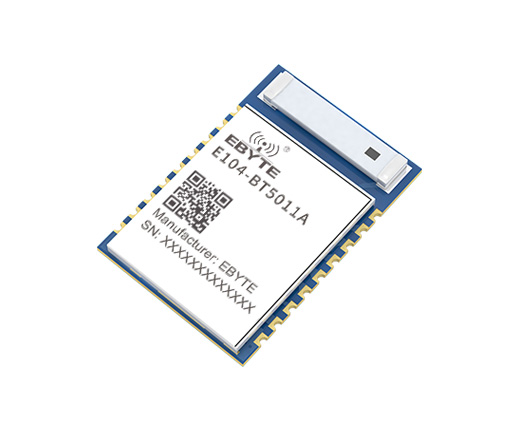

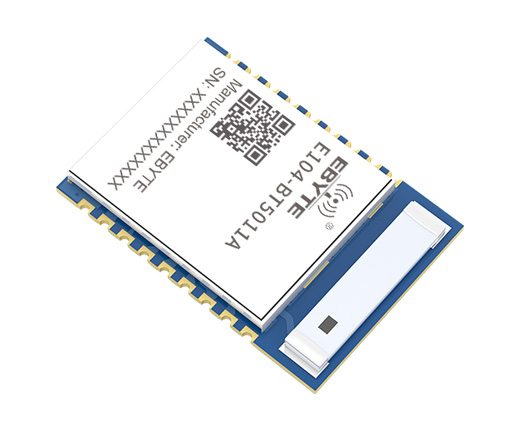

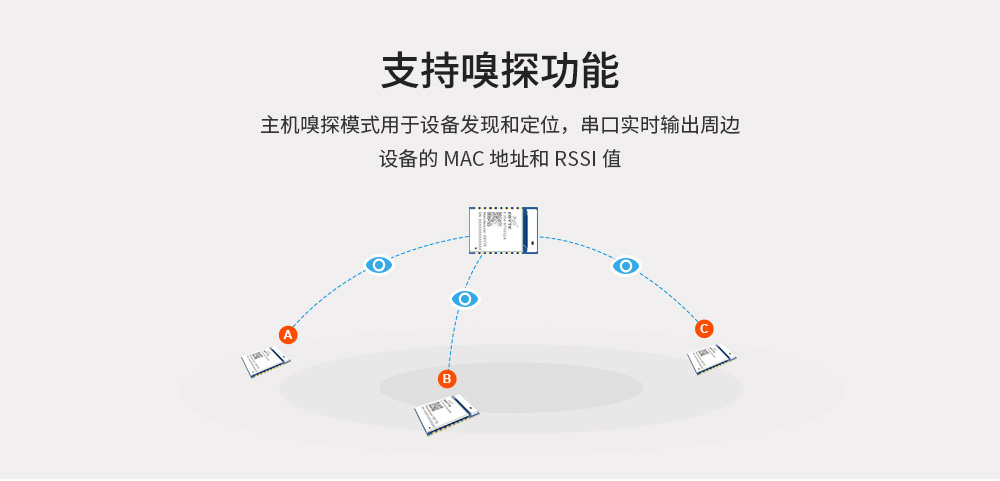

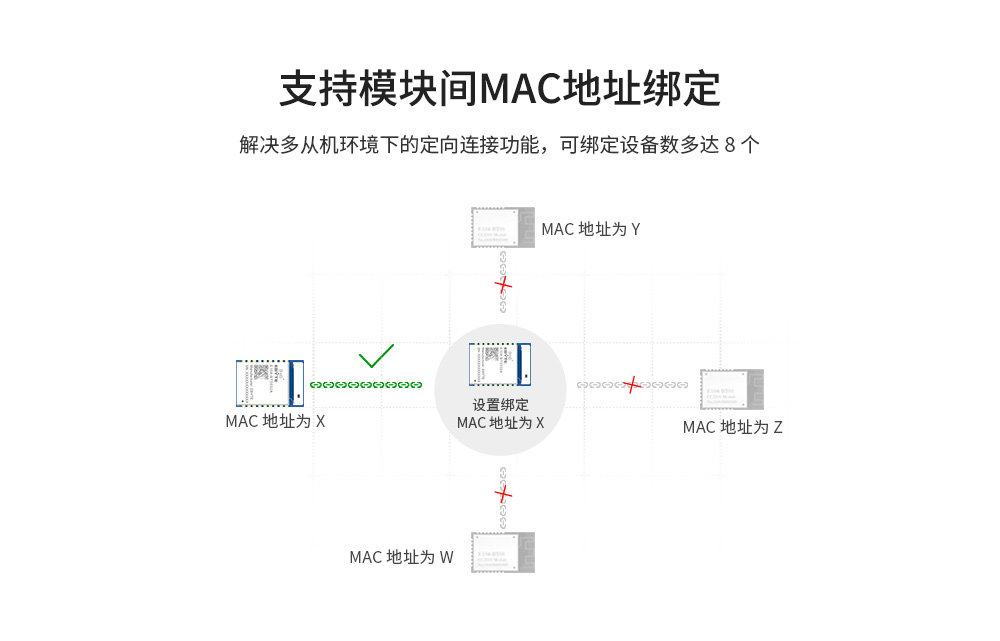

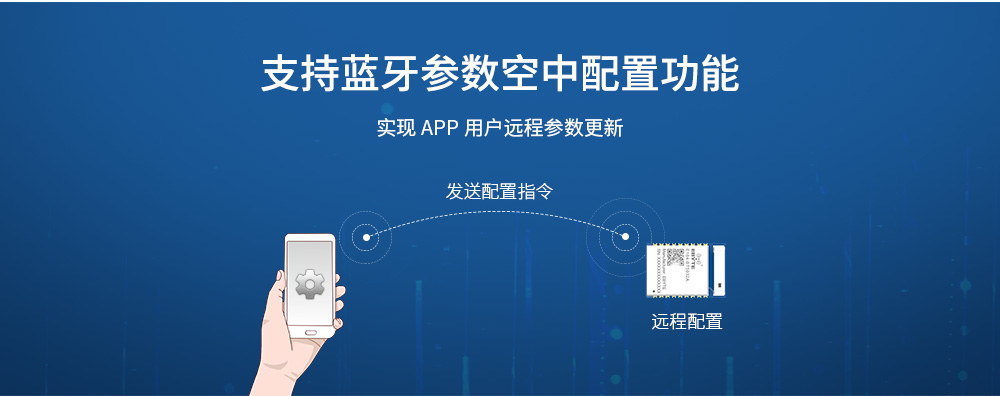

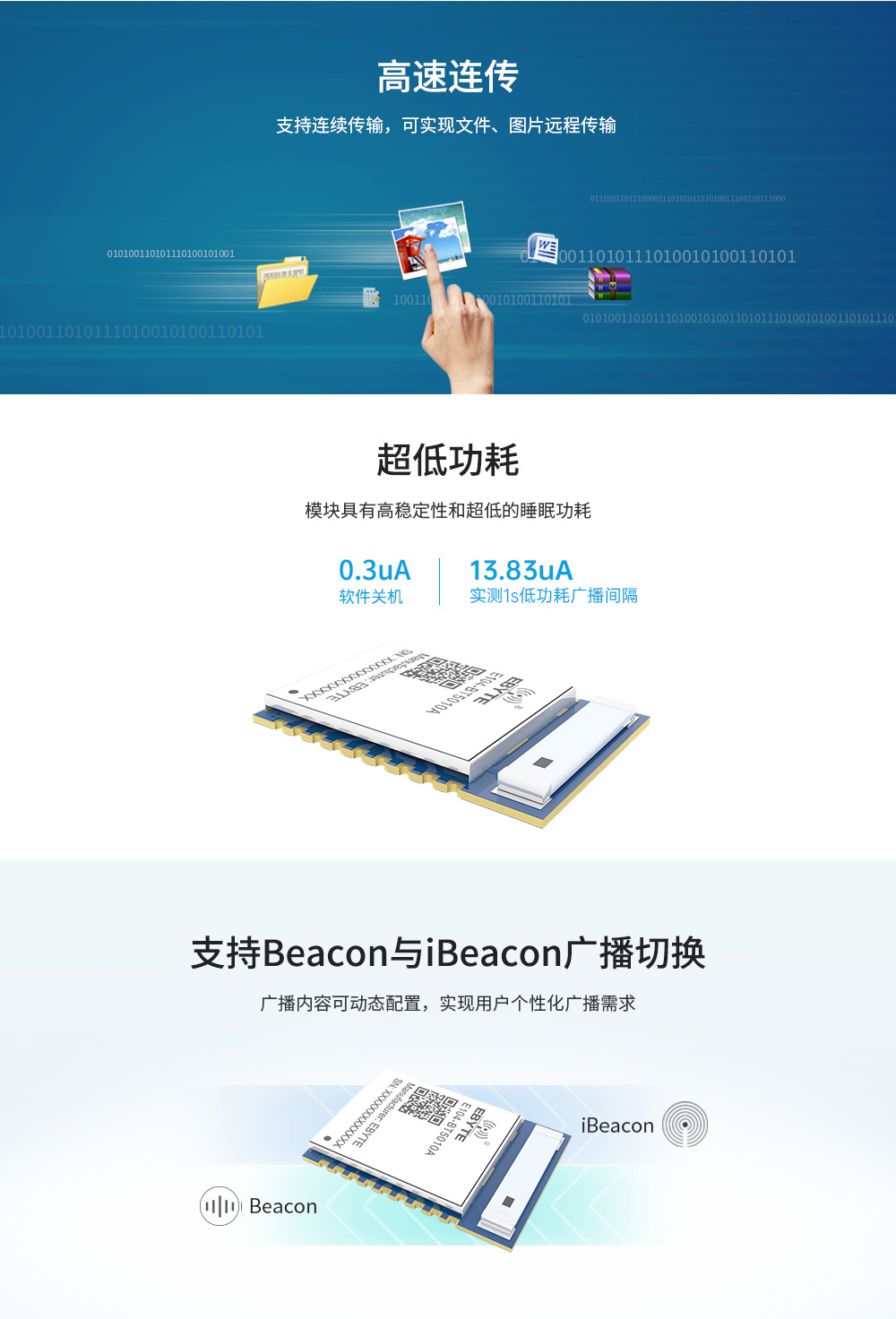

產品簡介：E104-BT5011A藍牙模塊是一款基于藍牙BLE5.1協議版本的主從一體串口轉藍牙模塊，該藍牙模塊體積小、功耗低，工作在2.4GHz頻段。
| 射頻參數 | 參數值 | 備注 |
| 工作頻段 | 2402~2480 MHz | 支持ISM 頻段 |
| 最大發射功率 | 4 dBm | - |
| 接收靈敏度 | -96 dBm | Bluetooth?lowenergymode |
| 實測距離 | 70米 | 晴朗空曠環境，高度 2.0 米; @4dBm;空速：1Mbps |
| 硬件參數 | 參數值 | 備注 |
| 尺寸大小 | 11.5 * 16 mm | - |

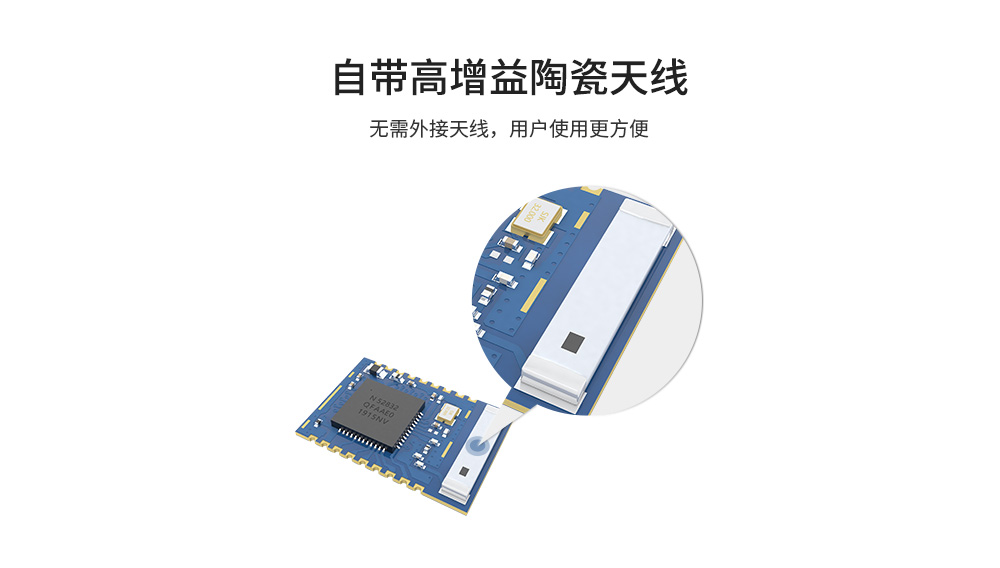

| 天線形式 | 陶瓷天線 | 等效阻抗約50Ω |
| 通信接口 | UART串口 | - |
| 封裝方式 | 貼片 | - |
| 電氣參數 | 最小值 | 典型值 | 最大值 | 單位 | 條件 |
| 電源電壓 | 1.7 | 3.3 | 3.6 | V | ≥3.3V 可保證輸出功率 |
| 通信電平 | - | 3.3 | - | V | 使用5V TTL 有風險燒毀 |
| 發射電流 | - | 13 | 19 | uA | - |
| 接收電流 | - | 13 | - | mA | - |
| 休眠電流 | - | 8 | - | mA | - |
| 休眠廣播電流(默認) | - | 13.83 | - | mA | 廣播間隙為 1s |
| 工作溫度 | -40 | - | +85 | ℃ | 工業級 |
| 儲存溫度 | -40 | - | +125 | ℃ | - |
| 序號 | 定義 | 引腳方向 | 引腳功能 | 說明 |
| 1 | GND | 輸入 | 電源地 | - |
| 2 | P0.25 | - | NC | - |
| 3 | P0.26 | - | NC | - |
| 4 | MOD | 輸入 | 模式選擇 | 低電平：配置模式； 高電平：透?jìng)髂Ｊ健?/span> |

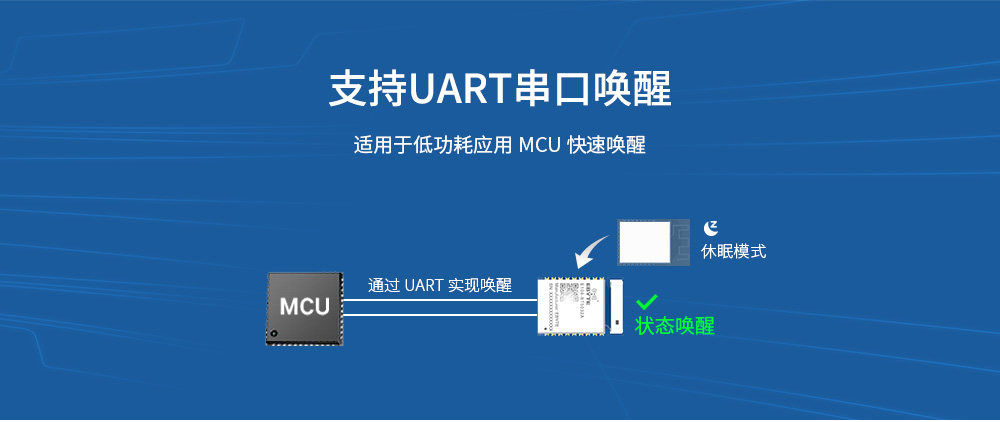

| 5 | WKP | 輸入 | 喚醒引腳 | 喚醒：下降沿； 睡眠：上升沿。 |
| 6 | DISC | 輸入 | 斷開連接引腳 | 內部上拉。下降沿有效 |
| 7 | LINK | 輸出 | 連接狀態 | 藍牙連接：低電平 藍牙無連接：高電平 |
| 8 | DATA | 輸出 | 數據指示 | 數據指示引腳，模塊通過串口輸出數據時，模塊置DATA引腳為低電平，表示正在發送數據。AT指令響應不改變DATA引腳狀態。 |
| 9 | GND | - | 電源地 | - |
| 10 | P0.02 | - | NC | - |
| 11 | P0.03 | - | NC | - |
| 12 | P0.04 | - | NC | - |
| 13 | P0.05 | - | NC | - |
| 14 | P0.06 | - | NC | - |
| 15 | P0.07 | - | NC | - |
| 16 | GND | - | 電源地 | 電源地 |
| 17 | VCC | - | 電源正 | 電源正 |
| 18 | RXD | 輸入 | UART RX 引腳 | - |
| 19 | TXD | 輸出 | UART TX 引腳 | - |
| 20 | RTS | 輸出 | 流控 | 內部上拉 |
| 21 | CTS | 輸入 | 流控 | 內部上拉 |
| 22 | P0.21/RST | - | 電源復位 | 低電平有效 |
| 23 | SWDCLK | - | - | - |
| 24 | SWDIO | - | - | - |
